508 Narrow ride or linear trace through the terrain

from
ISOM 2017-2
508 Narrow ride or linear trace through the terrain (ISOM 2017-2)

Geometry: line.

Definition

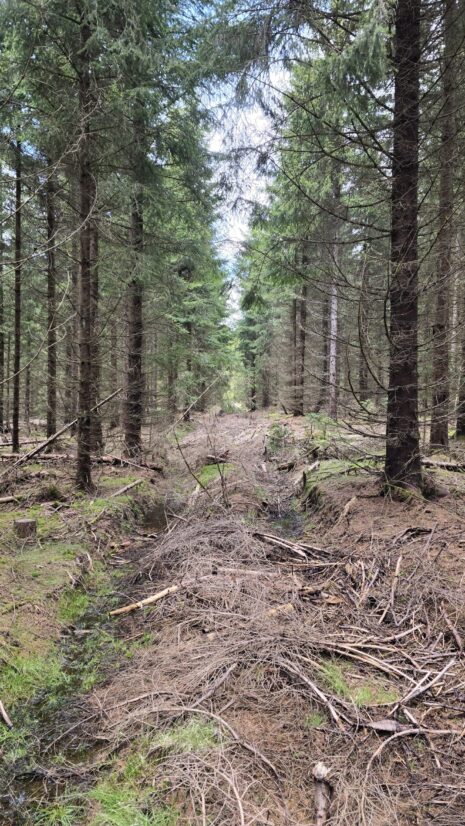

A forest ride or a prominent trace (forestry extraction track, sandy track, ski track) through the terrain which does not have a distinct runnable path along it.
Runnability is shown using a slightly thicker line of yellow, green or white as background. Without outline: the same runnability as the surroundings.
Yellow 100%: easy running.
White in green: normal runnability.
Green 30%: slow running.
Green 60%: walk.

Parameters

Minimum length: two dashes (3.25 mm – footprint 48 m).

Colour: black + white/green/yellow.

Correct examples
